Shacman H3000 10 Wheel Dumper Truck with 25 Cbm Dump Box

Basic Info.

Seats	≤5
Horsepower	351-450hp
Tire Certification	ECE, GCC, ISO, DOT
Tire Design	Radial
Dumping Type	Front Lifting Style
Condition	New
Engine	Weichai
Brand	Shacman Dumper Truck
Transport Package	Naked
Trademark	SHACMAN
Origin	China
HS Code	8704230090
Production Capacity	20000/Year

Product Description

SHACMAN H3000 10 WHEEL SERIES DUMPER TRUCK, WEICHAI 420 HP ENGINE , EURO-V EMISSION,25 CBM DUMP BOX

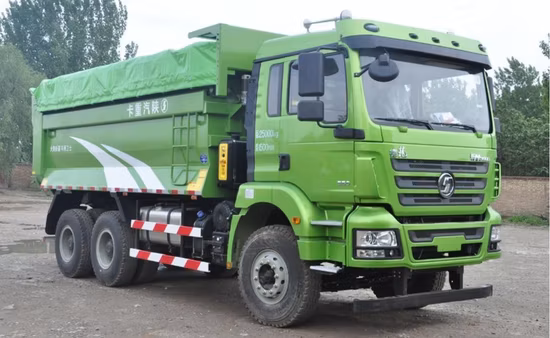

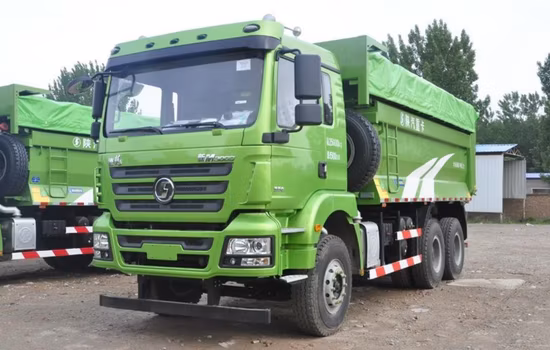

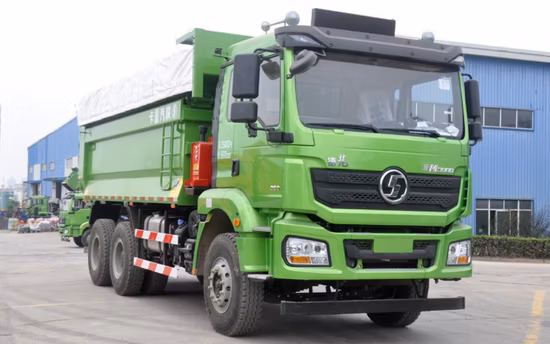

1. TRUCK PIC

2. SPECIFICATION SHEET
SHACMAN H3000 375HP 6x4 DUMP TRUCK

Driving type				6X4
Wheelbase(mm)				4175+1400
Max weight (KG)				≤50000
Max Speed(km/h)				65
Dimensions(L×W×H)				8975×2490×3540
Approach/Departure angle (°)				27/12
Max. gradeability (%)				35
Engine(Cummins)	Model			WP12.375E50
	Fuel Type			Diesel
	Emission			Euro V
	Rated output(kw/rpm)			276/1900
	Max torque(N.m)			1800
	Displacement (L)			11.596L
Fuel Tanker Capacity(L)				400L aluminum
Clutch		Model		φ430 diaphragm-spring type
		Transmission Model		(Fast)12JSD180+QH50
		Frame		850x300(8+7)
Front Axle		9.5T MAN
Rear Axle		16TMAN Double reductionSpeed ratio 5.92
Suspension		Front& rear multi-leaf spring; 4-main leaves+4 U-bolts
Tire		12.00R20
Qty Of Tire		10+1
Battery		180AH
Cab		Speed meter, RPM meter,fuel level gauge, air pressure gauge, engine oil pressure meter,coolant temperature meter,2doors,A/C,1 sleeping bed, Electric windows lifter, Adjustable Hydraulic seat with seat belts, Hydraulic cab reversal, Hydraulic suspension of cab, sun protector, Radio with MP3, Water tank protection grid,Front and rear lamp protection grid,Engineering bumper,A rear window,With curtain
BOX/L*W*H		6000*2300*1800mm,bottom 8 mm side 4 mm, Φ 180 front lifting cylinder
